Introduction

Random walker with 9 outcomes

Declaring the walker and the main functions.

The setup() function initialises the object and it’s called only once.

var walker;

function setup() {
    createCanvas(650, 350);
    background(0);
    walker = new Walker();
}

The draw() method is created and the functions inside are called in a loop. The render() and step() functions are called from the Walker class.

function draw() {
    walker.render();
    walker.step();
}

The Walker class and the functionality are created.

The x and y locations are set and the render() function draws a dot at the given x and y coordinates, which are in the middle of the canvas.

function Walker() {
    this.x = width / 2;
    this.y = height / 2;

    // Sets the walker starting point
    this.render = function() {
        stroke(255);
        point(this.x, this.y);
    }

The step() function sets the random steps of the walker. The variable stepx and stepy are declared and we ask for a random number from -1 to 2 and then the number is floored to give an integer. This is one way of getting 9 outcomes if you include not moving.

this.step = function() {
    var stepx = floor(random(-1, 2));
    var stepy = floor(random(-1, 2));

    this.x = this.x + stepx;
    this.y = this.y + stepy;

The walker is constrained within the canvas using the constrain() function.

        this.x = constrain(this.x, 0, width);
        this.y = constrain(this.y, 0, height);
    }

}

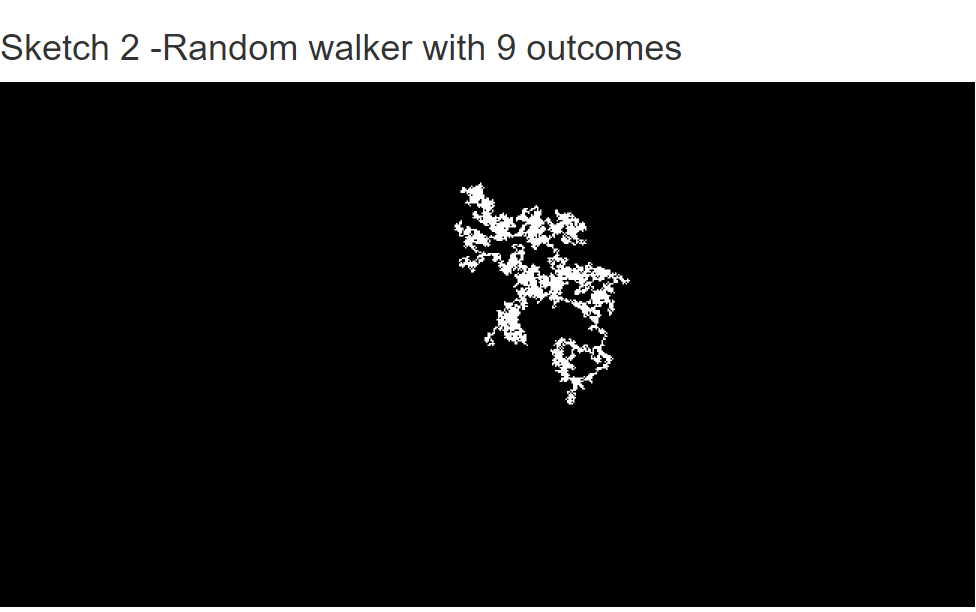

Result:

Random Walker
