Introduction

Proof of uniform distribution of numbers

Declare the global variables. An empty array is created and then the total number of the elements in the array is set.

var randomCounts = [];
var total = 20;

The setup() function contains the canvas and the loop that populates the array with 0s.

function setup(){
    createCanvas(650, 350);

    for (var i = 0; i < total; i++){
        randomCounts[i] = 0;
     }
}

The draw() function will run in a loop creating the objects.

The background is set so every loop it will refresh and hide the trail. A new variable index is created which takes the random numbers in the array and floors it, returning an integer from 0 to 19, and then it gets added to the array.

// Draw the objects
function draw(){
    background(0);
    var index = floor(random(total));
    randomCounts[index]++;

The next thing is drawing the rectangles by giving them the stoke, stroke weight and a fill colour. A new variable is declared to calculate the width of the bars by dividing the width of the canvas by the number of the elements in the array. A for loop is created to generate the rectangles depending on the random number received.

    stroke(0);
    strokeWeight(0.5);
    fill(255);

    var w = width/randomCounts.length;

    for (var x = 0; x < randomCounts.length; x++){
        rect(x * w, height - randomCounts[x], w - 1, randomCounts[x]);
    }
}

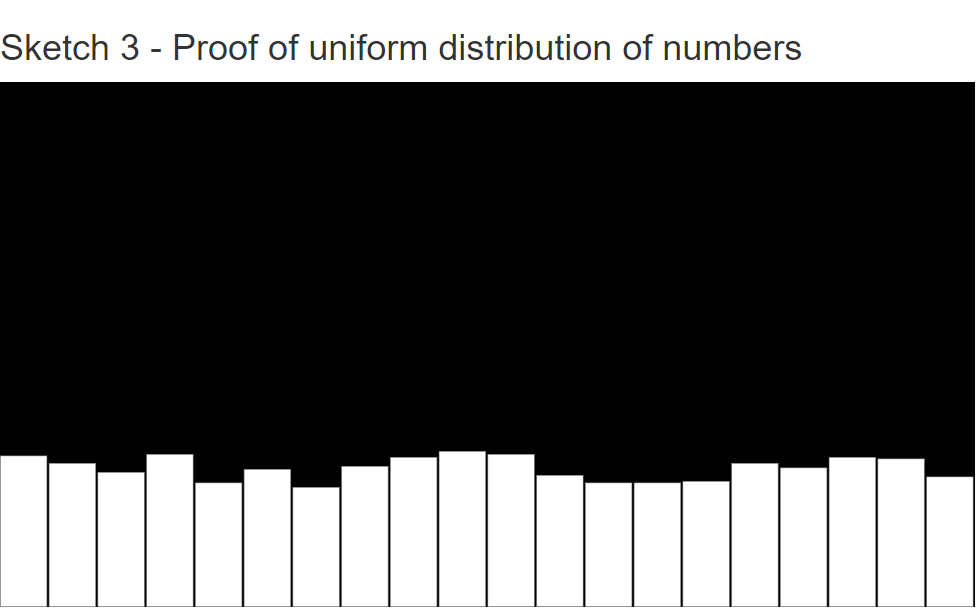

Result:
