Introduction

One Dimensional Noise - Vectors

In the first part of the exercise the walker and the number of walkers are declared. The setup() function creates the canvas, sets the number of walkers to 10, sets the walkers to be an empty array and then sets the background colour. A for loop is set so for each loop where i is less than the number of walkers then a new walker is created. This loop will run ten times.

var walkers;
var noOfWalkers;

function setup(){
    createCanvas(650, 350);
    noOfWalkers = 10;
    walkers = [];

    for (i = 0; i < noOfWalkers; i++){
        walkers[i] = new Walker();
    }

    background(141,160,203);
}

The draw() function first creates a rectangle the size of the canvas with an opacity of 15 and then a for loop is set so for each loop where i is less than the number of walkers the step() and render() functions are called for each walker object.

function draw(){
    fill(0, 15);
    rect(0, 0, width, height);

    for(i = 0; i < noOfWalkers; i++){
        walkers[i].step();
        walkers[i].render();
    }
}

The Walker class is created next. In the Walker class we store the position x and y in a variable called position by using createVector() which stores two values in a variable. The next variable noff gets two random numbers for x and y between 0 and 1000.

The render() function contains an ellipse with no stroke and a white fill. The ellipse is created using the position x and y and for width and height the same function map() was used to create a circle. The map() function takes five arguments which are the value we want to map, the current x and y ranges and the desired new x and y ranges. For the value we want to map we use the noise() function with the random noff.x as argument. This takes the first random number and draws the ellipse.

function Walker(){
    this.position = createVector(width/2, height/2);
    this.noff = createVector(random(1000), random(1000));

    this.render = function(){
        noStroke();
        fill(255, 50);
        ellipse(this.position.x,
                this.position.y,
                map(noise(this.noff.x), 0, 1, 20, 200),
                map(noise(this.noff.x), 0, 1, 20, 200)
                );
    }

The step() function takes the x and y position and maps them using the noise() function for noff.x and then noff.y values which are then incremented using the vector add() function that takes two parameters, one for x and one for y. This will add ellipses with a trail all over the canvas, but in a smooth sequence.

    this.step = function(){
        this.position.x = map(noise(this.noff.x), 0, 1, 0 - 200, width + 200);
        this.position.y = map(noise(this.noff.y), 0, 1, 0 - 200, height + 200);
        this.noff.add(0.005, 0.005);
    }
}

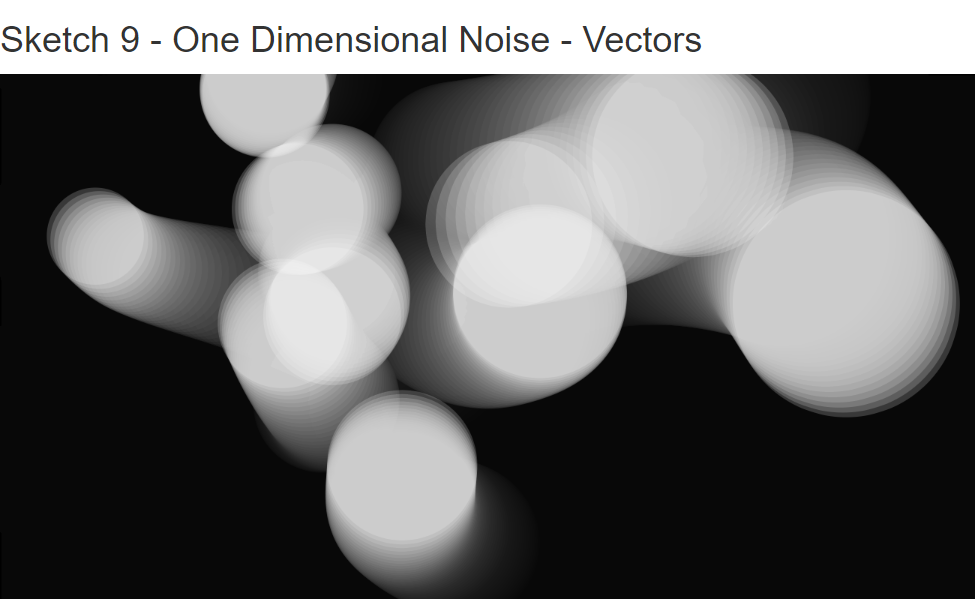

Result:
