Understanding Pixel Array
The setup() function sets the canvas size and the pixel density to 1, for the HD and retina display devices.
The draw() function uses the loadPixels() function, which loads the pixels on the canvas into the pixels array. This function is always called before the pixels are read or drawn on the canvas. A new variable index is created to hold the formula which calculates the pixels. The second pixel in the x and y position in the array is chosen. Next the pixels are added in the array, each pixel for each RGBA value. The index + 0 is the red in the array, the index + 1 is the red plus one pixel, which is green, the index + 2 is the red plus two pixels, which is blue and then index + 3 is the opacity. The function updatePixels() draws the pixels on the canvas. In this case all the pixels are drawn green.
function setup(){
createCanvas(650, 350);
pixelDensity(1);
}
function draw(){
loadPixels();
var index = (2 + 2 * width) * 4;
pixels[index + 0] = 255;
pixels[index + 1] = 0;
pixels[index + 2] = 0;
pixels[index + 3] = 255;
updatePixels();
}

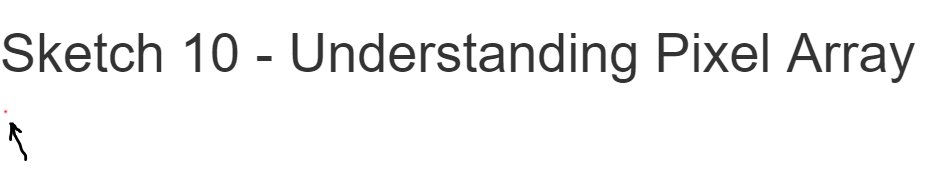

Result:
