Introduction

Understanding Pixel Array - 2D Noise

The variable yoff is declared first. The value is an arbitrary moment in time, offset by an amount of 1000. The setup() function sets the frame rate which will refresh 1 time per second, canvas size, the pixel density to 1 and the noiseDetail which adjusts the character and level of detail produced by Perlin noise.

var yoff = 1000.0;

function setup(){
    frameRate(1);
    createCanvas(650, 350);
    pixelDensity(1);
    noiseDetail(10);
}

The draw() function uses the loadPixels() function to load the pixels on the canvas into the pixels array. This function is always called before the pixels are read or drawn on the canvas.

Two for loops are added to go through each y value first and then for each y value, loop through each x value. In the y loop we declare the xoff variable and give it an amount of 100. In the x loop we add a new variable called index which will hold the formula to calculate the pixels. The second variable bright gets a noise value for the xoff and yoff and maps it to a value. Next the pixels are added in the array, each pixel for each RGBA value, which is the mapped value.

At the end of the x loop the xoff value is incremented by 0.02 and at the end of the y loop the yoff is incremented by 0.02.

The function updatePixels() draws the pixels on the canvas.

function draw(){
    loadPixels();

    for(var y = 0; y < height; y++){
        var xoff = 100.0;

        for(var x = 0; x < width; x++){

            var index = (x + y * width) * 4;
            var bright = map(noise(xoff, yoff), 0, 1, 0, 255);

            pixels[index + 0] = bright;
            pixels[index + 1] = bright;
            pixels[index + 2] = bright;
            pixels[index + 3] = 255;

            xoff += 0.02;
        }
        yoff += 0.02;
    }
    updatePixels();
}

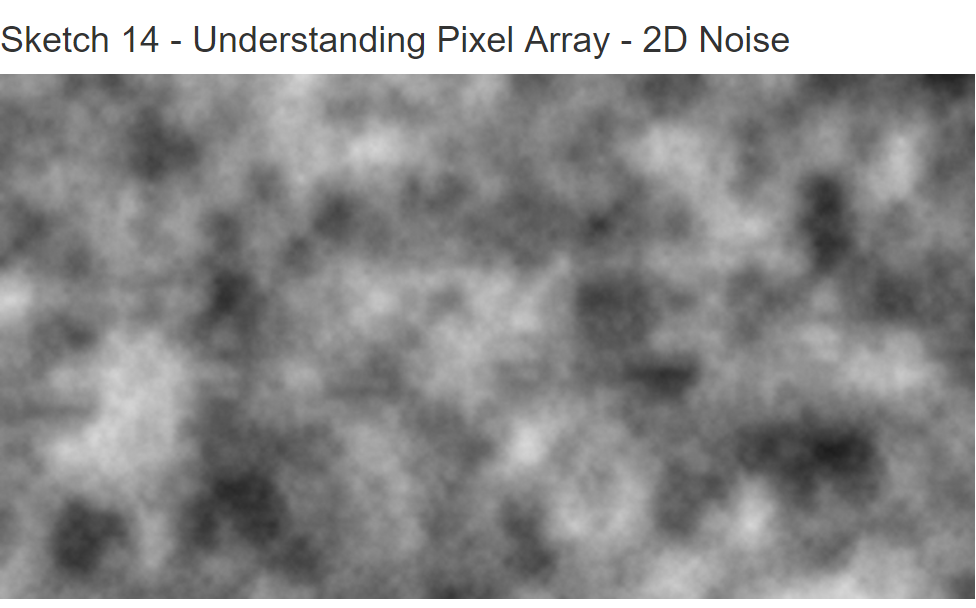

Result:
