Bouncing Ball - No Vector
To draw a moving ball, the first thing in the code is to declare the x, y, xspeed and yspeed variables. In the setup() function we add the canvas.
var x = 100,
y = 100,
xspeed = 2.5,
yspeed = 5;
function setup(){
createCanvas(650, 350);
}
In the draw() function we set the background so it resets every time the loop runs. The next thing is to add the speed to the x and y variables. This will create the ball at a different location each time. The if statements are added to stop the ball from leaving the canvas.
function draw(){
background(0);
x = x + xspeed;
y = y + yspeed;
if((x > width) || (x < 0)){
xspeed = xspeed * -1;
}
if((y > height) || (y < 0)){
yspeed = yspeed * -1;
}
The ball is created with a stroke, a fill of white and the ellipse at the x and y locations defined at the start of the code. The x and y locations change each frame. The outcome of this exercise is the ball bouncing around the canvas.
stroke(0);
fill(255);
ellipse(x, 170, 50, 50);
}

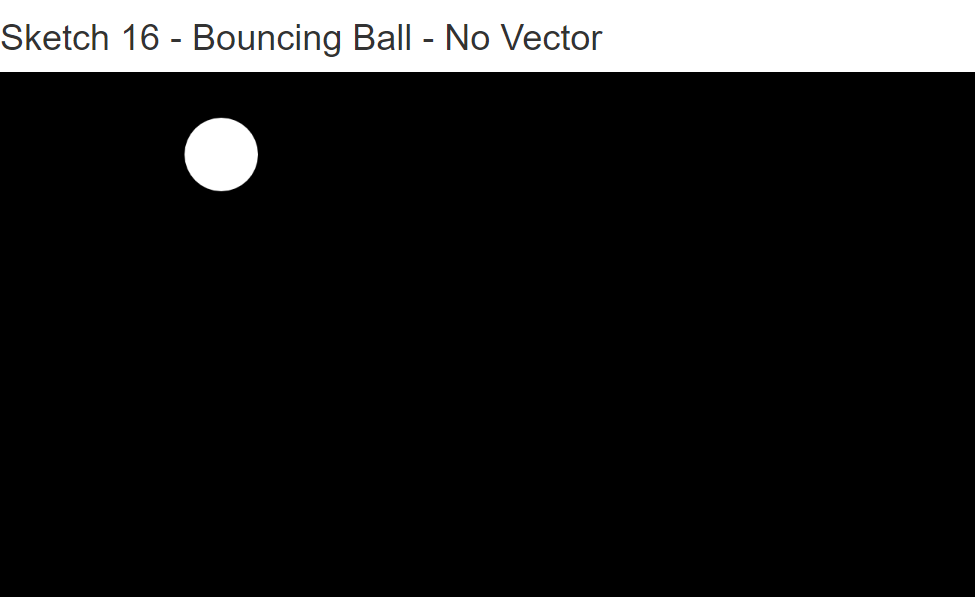

Result:
