Vectors

Vector Motion - Velocity

Mover

The Mover class is created. The Mover’s location is set at a random width and height using the createVector() function. The velocity is also used using the createVector() function. Next the functions are added.

The update function updates the object’s location by adding the velocity each frame. The display function creates the ellipse at the x and y locations with a stroke and fill. The checkEdge function checks if the ellipse leaves the canvas and it turns it around.

var Mover = function(){
    this.location = createVector(random(width), random(height));
    this.velocity = createVector(10, 5);

    this.update = function(){
        this.location.add(this.velocity);
    }

    this.display = function(){
        stroke(0);
        strokeWeight(2);
        fill(255);
        ellipse(this.location.x, this.location.y, 40, 40);
    }

    this.checkEdge = function(){
        if(this.location.x > width || this.location.x < 0){
            this.velocity.x = this.velocity.x * -1;
        }

        if(this.location.y > height || this.location.y < 0){
            this.velocity.y = this.velocity.y * -1;
        }
    }
}

Sketch

The global variable mover is added to be used in creating the objects. In the setup() function we create the canvas and we set the new Mover. The draw() function has the background and the functions are called from the Mover class so the movers are created.

var mover;

function setup(){
    createCanvas(650, 350);
    mover = new Mover();
}

function draw(){
    background(0);

    mover.update();
    mover.display();
    mover.checkEdge();
}

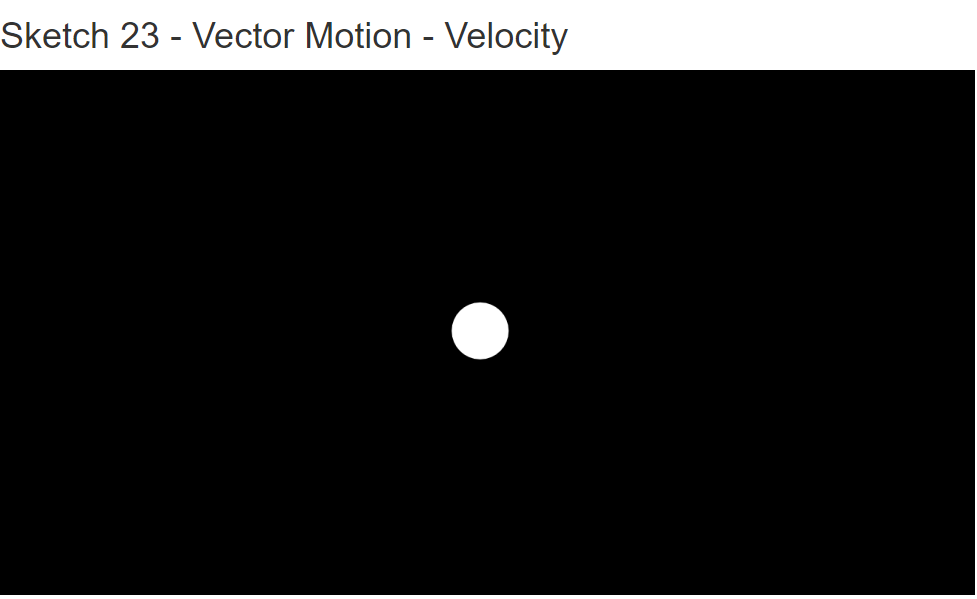

Result:
