Vectors

Vector Motion - An Array of Movers

Mover

The Mover class is created. The Mover’s location is set at a random point on the canvas using the createVector() and random() methods and we Math.floor() the random numbers to get an integer. The velocity is set and the acceleration is declared using the createVector() method.

var Mover = function(){

    this.location = createVector(Math.floor(random(width)), Math.floor(random(height)));
    this.velocity = createVector(3, 3);
    this.acceleration = createVector();

In the update function we add new variable mouse using vectors for mouseX and mouseY. The mouse position and location are subtracted using the p5.Vector class and the static method sub() to get a vector in return. Then the magnitude of the acceleration vector is set using the setMag() method. This function updates the object’s acceleration, velocity and location by adding the acceleration to velocity and set the limit of the maximum velocity to 10. Then we add the velocity to the location each frame.

The display function draws the ellipse at the x and y locations with a stroke and fill.

The checkEdge function checks if the ellipse leaves the canvas and it turns it around.

    this.update = function(){
        var mouse = createVector(mouseX, mouseY);

        this.acceleration = p5.Vector.sub(mouse, this.location);
        this.acceleration.setMag(0.2);

        this.velocity.add(this.acceleration);
        this.velocity.limit(10);
        this.location.add(this.velocity);
    }

    this.display = function(){
        stroke(0);
        fill(255);
        ellipse(this.location.x, this.location.y, 40, 40);
    }

    this.checkEdge = function(){
        if(this.location.x > width || this.location.x < 0){
            this.velocity.x = this.velocity.x * -1;
        }

        if(this.location.y > height || this.location.y < 0){
            this.velocity.y = this.velocity.y * -1;
        }
    }
}

Sketch

The global variable mover is added as an array. In the setup() function we create the canvas and we add a for loop that creates a new Mover object each time the loop is run. The draw() function has the background and the functions are called in a for loop from the Mover class so the movers objects are drawn on the canvas.

var movers = [];

function setup(){
    createCanvas(650, 350);

    for(var i = 0; i < 20; i++) {
        movers[i] = new Mover();
    }
}

function draw(){
    background(0);

    for(var i = 0; i < movers.length; i++){
        movers[i].update();
        movers[i].display();
        movers[i].checkEdge();
    }
}

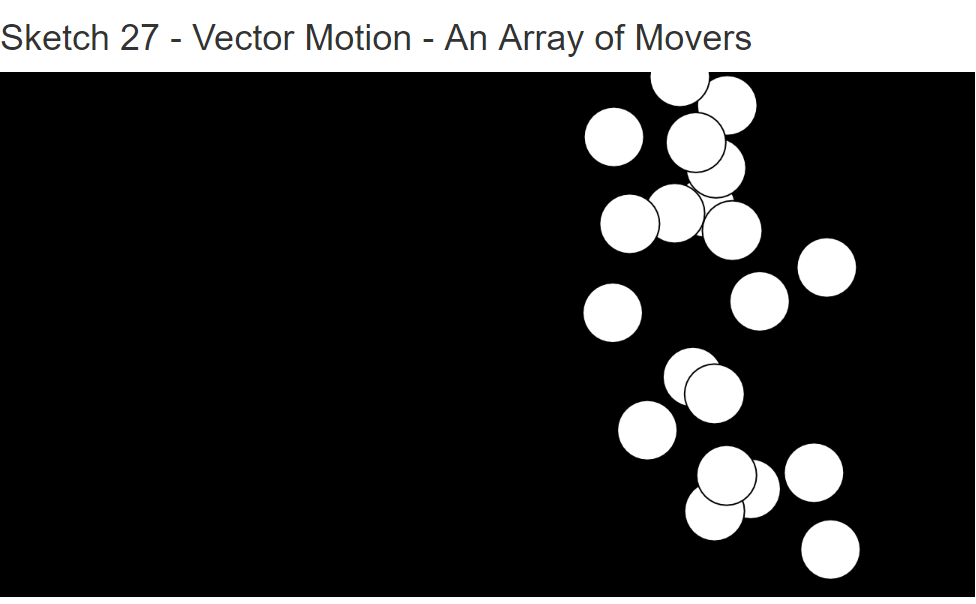

Result:
