Vectors

Follow the mouse

Mover

The Mover class is created. The Mover’s location is set at a random point on the canvas using the createVector() and random() methods and we Math.floor() the random numbers to get an integer. The RGB colours are set using the random() function which we Math.floor() to get an integer value from 0 to 255.

The velocity and acceleration are set using the createVector() method.

function Mover() {
    this.location = createVector(Math.floor(random(width)), Math.floor(random(height)));
    this.r=Math.floor(random(255));
    this.g=Math.floor(random(255));
    this.b=Math.floor(random(255));

    this.velocity = createVector(1, 2);
    this.acceleration = createVector();

The render function draws the ellipse at the x and y locations with no stroke and a random fill.

In the update function we add a new variable mouse using vectors for mouseX and mouseY. The mouse position and location are subtracted using the p5.Vector class and the static method sub() to get a vector in return for the acceleration. The magnitude of the acceleration vector is set using the setMag() method. Then we update the object’s acceleration, velocity and location by adding the acceleration to velocity and set the limit of the maximum velocity to 5. Next we add the velocity to the location, each frame.

The checkEdge function checks if the ellipse leaves the canvas and it turns it around.

    this.render = function () {
        fill(this.r,this.g,this.b);
        noStroke();
        ellipse(this.location.x, this.location.y, 10, 10);
    };

    this.update = function(){
        var mouse = createVector(mouseX, mouseY);

        this.acceleration = p5.Vector.sub(mouse, this.location);
        this.acceleration.setMag(0.2);

        this.velocity.add(this.acceleration);
        this.velocity.limit(5);
        this.location.add(this.velocity);
    };

    this.checkEdge = function (){
        if(this.location.x > width || this.location.x < 0){
            this.velocity.x = this.velocity.x * -1;
        }
        if(this.location.y > height || this.location.y < 0){
            this.velocity.y = this.velocity.y * -1;
        }
    };
};

Sketch

The global variable mover is added as an array. In the setup() function we create the canvas and we add a for loop that creates a new Mover object each time the loop runs. The draw() function has the background and the functions are called in a for loop from the Mover class so the movers objects are drawn on the canvas.

var movers = [];

function setup() {
    createCanvas(650, 350);

    for(var i = 0; i < 40; i++){
		movers[i] = new Mover();
	}
}

function draw() {
	background(0, 50);

 	for(var j = 0; j < movers.length; j++){
        movers[j].render();
 		movers[j].update();
 		movers[j].checkEdge();
	}
}

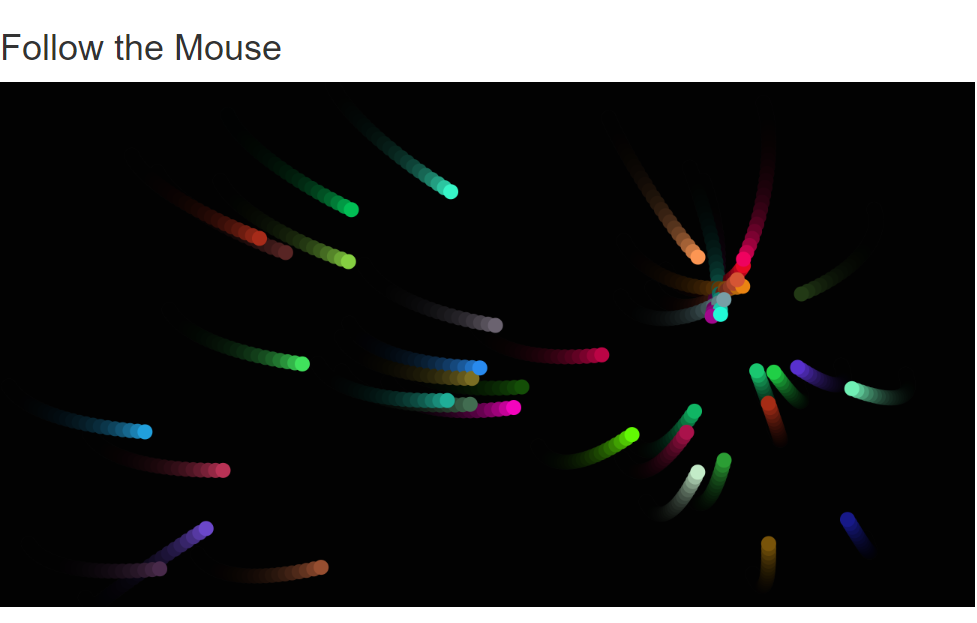

Result:
