Forces

Friction 2

Mover

The Mover class is created with the parameter m. The Mover’s location, velocity and acceleration is set using the createVector(). We set the mass to m.

var Mover = function (m){
    this.location = createVector(Math.floor(random(width)), 30);
    this.velocity = createVector(2, 2);
    this.acceleration = createVector(0, 0);
    this.mass = m;

The update function updates the object’s velocity and location by adding the acceleration to velocity and set the limit of the maximum velocity to 5. We then add the velocity to the location and we reset the acceleration back to zero. This will reset the acceleration each frame.

    this.update = function(){
        this.velocity.add(this.acceleration);
        this.velocity.limit(5);
        this.location.add(this.velocity);
        this.acceleration.mult(0);
    }

The display function creates the ellipse at the x and y locations with the size of the mass and a stroke and fill.

The checkEdge function checks if the ellipse leaves the canvas and it turns it around.

The applyForce function is created to add forces to the objects. Because we don’t want to affect the force vector we use a static function p5.Vector to calculate the acceleration.

    this.display = function (){
        fill(255);
        stroke(255, 0, 255);
        strokeWeight(1);
        ellipse(this.location.x, this.location.y, this.mass, this.mass);
    }

    this.checkEdges = function(){
        if(this.location.x > width || this.location.x < 0){
            this.velocity.x = this.velocity.x * -1;
        }
        if(this.location.y > height || this.location.y < 0){
            this.velocity.y = this.velocity.y * -1;
        }
    }

    this.applyForce = function(force){
        var f = p5.Vector.div(force, this.mass);
        this.acceleration.add(f);

    }
}

Sketch

The global variable mover is added as an array. In the setup() function we add the canvas and in a for loop we create the new Mover with the parameters given.

var movers= [];

function setup(){
    createCanvas(650, 350);

    for (var i = 0; i < 10; i++){
        movers[i] = new Mover(Math.floor(random(20, 60)));
    }
}

The draw() function contains the background and a for loop where each Mover is set. The loop contains the coefficient of friction, the normal force, the magnitude of friction and the friction using a static function and then we normalize it and multiply it by the magnitude of friction which gets the velocity vector and multiplies it by 1. This will determine the direction and magnitude of friction.

The functions are called from the Mover class so the mover is created.

function draw(){
    background(0);

    for (var i = 0; i < movers.length; i++){
        var c = 0.5;
        var normal = 1;
        var frictionMag = c * normal;
        var friction = p5.Vector.mult(movers[i].velocity, -1);
        friction.normalize();
        friction.mult(frictionMag);

        movers[i].applyForce(friction);
        movers[i].checkEdges();
        movers[i].update();
        movers[i].display();
    }
}

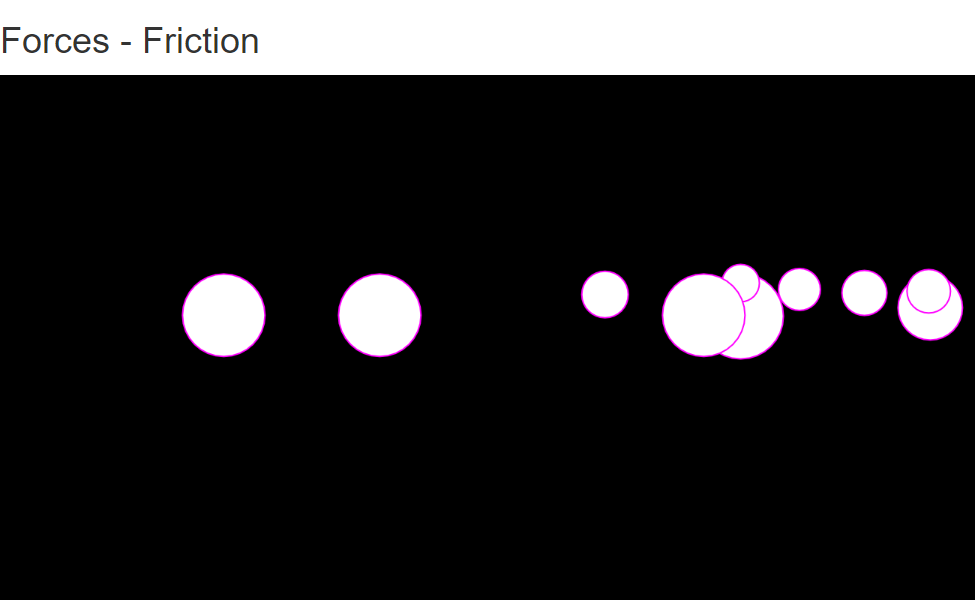

Result:
