Wind Chimes
Mover
The Mover class is created with parameter for x and y location, x and y velocity, x and y acceleration and the mass. The Mover’s location, velocity and acceleration is set using the createVector(). We set the mass to m.
var Mover = function (x, y, vx, vy, ax, ay, m) {
this.location = createVector(x, y);
this.velocity = createVector(vx, vy);
this.acceleration = createVector(ax, ay);
this.mass = m;
The update function updates the object’s velocity by adding the acceleration and sets the limit of the maximum velocity to 5. We then add the velocity to the location and we reset the acceleration back to zero each time.
this.update = function () {
this.velocity.add(this.acceleration);
this.velocity.limit(4);
this.location.add(this.velocity);
this.acceleration.mult(0);
}
The display function creates the ellipse at the x and y locations with the size of the mass multiplied by 5 and a fill.
The checkEdges function checks if the ellipse leaves the canvas and it turns it around.
The applyForce function is created with the parameter force, to add forces to the objects. Because we don’t want to affect the force vector we use a static function p5.Vector to calculate the acceleration of the forces.
this.display = function () {
noStroke();
fill(255, 0, 0, 50);
ellipse(this.location.x, this.location.y, 5 * this.mass, 5 * this.mass);
}
this.checkEdges = function () {
if (this.location.x > width) {
this.location.x = 0;
}
if (this.location.x < 0) {
this.location.x = width;
}
if (this.location.y > height) {
this.location.y = 0;
}
if (this.location.y < 0) {
this.location.y = height;
}
}
this.applyForce = function (force) {
var f = p5.Vector.div(force, this.mass)
this.acceleration.add(f);
}
}
WindChime
The WindChime class is created with the parameters xpos and ypos for location, wind magnitude, and start and end angles . Each variable is set and given the parameter as value. Other variables added added are the windVec which is a vector and time.
function WindChime(_xpos, _ypos, _windMag, _start, _end){
this.xpos = _xpos;
this.ypos = _ypos;
this.windMag = _windMag;
this.startAngle = _start;
this.endAngle = _end;
this.windVec = createVector();
this.time = 1000;
The update() function contains the wind direction, which is mapped to the start and end angles, the wind vector, which uses the static function p5.Vector to calculate the wind direction using the fromAngle() and the radians() functions. The wind magnitude is then multiplied to the wind vector and the time is to be added each frame.
this.update = function(){
this.windDir = map(noise(this.time), 0 , 1, this.startAngle, this.endAngle);
this.windVec = p5.Vector.fromAngle(radians(this.windDir));
this.windVec.mult(this.windMag);
this.time += 0.1;
}
The display() function contains the creation of the wind chime objects. The content of the wind chime is added inside a push() and pop() functions which allow new changes of the grid without affecting the variables already created.
The translation and scale of the grid is added and the text with the position and size, to show the magnitude and wind direction. The ellipse is created with the stroke and fill. Next we add the arrow to show the direction of the wind using a line and triangle and we rotate it to the wind direction using the rotate() and the heading() functions which calculates the angle of roatation.
this.display = function(){
push();
translate(this.xpos, this.ypos);
scale(0.5, 0.5);
textSize(23);
smooth();
fill(255);
textAlign(CENTER);
text("Magitude: " + this.windMag, 0, 120);
this.string = str(this.windVec.heading());
text("Wind Direction: " + this.string.substr(0, 6), 0, 160);
stroke(0);
strokeWeight(1);
fill(255);
ellipse(0, 0, 150, 150);
rotate(this.windVec.heading());
line(-65, 0, 65, 0);
triangle(40, -15, 65, 0, 40, 15);
pop();
}
}
Sketch
The windchimes and mover classes are declared. In the setup() function we add the canvas and two windchimes objects with parameters. In a for loop we add the mover at random locations.
var windchimes = [];
var movers = [];
function setup() {
createCanvas(640, 640);
windchimes[0] = new WindChime(100, 100, 0.5, 0, 90);
windchimes[1] = new WindChime(500, 500, 0.6, 180, 280);
for(var x = 0; x < 100; x++){
movers[x] = new Mover(random(0, 650), random(0, 640), 0, 0, 0, 0, 4);
}
}
The draw() function contains the background, the movers and the wind chimes. There are three for loops added. For each mover created, use the wind chimes with their applied force and run the function update(), display() and checkEdges() found in the movers class. For each wind chime run the functions update() and display() found in the WindChime class.
function draw() {
background(55, 0, 0);
for (var i = 0; i < movers.length; i++){
for (var j = 0; j < windchimes.length; j++){
movers[i].applyForce(windchimes[j].windVec);
}
movers[i].update();
movers[i].display();
movers[i].checkEdges();
}
for(var y = 0; y < windchimes.length; y++){
windchimes[y].update();
windchimes[y].display();
}
}

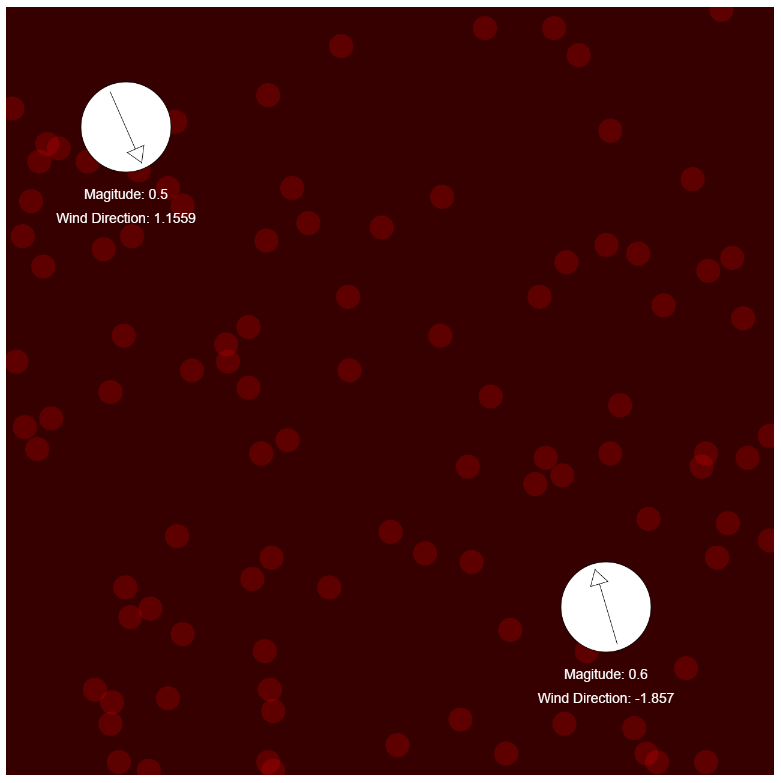

Result:
